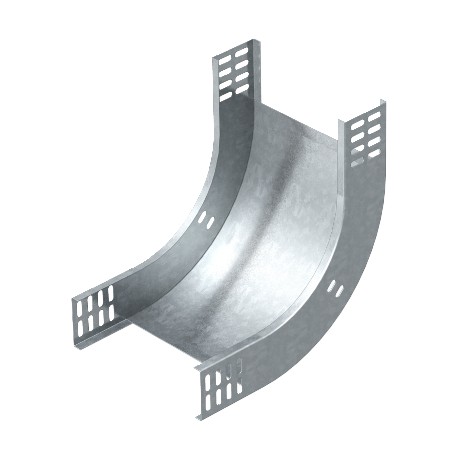

RBV 650 S FT 7007026 OBO BETTERMANN 90° vertical bend rising, 60x500, Hot-dip galvanised, DIN EN ISO 1461, S..
RBV 650 S FT
7007026
OBO BETTERMANN
1 Pcs.
90° vertical bend rising, 60x500, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
90° vertical bend, rising, 60 FT. 90° rising vertical bend, for all cable tray types of 60 mm side height.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann RBV 650 S FT 90° vertical bend rising component routes tray installations upward to successfully navigate structural obstacles in facilities. Vertical rises maintain consistent cable support standards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical rising
- CO2 Footprint (GWP) Cradle-to-Gate: 5,2 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 60x500
- Dimension B: 500 mm
- Height: 60 mm
- Height: 2 in
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,2 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x500 |
| Dimension B | 500 mm |
| Height | 60 mm |
| Height | 2 in |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 20 in |
| Width | 500 mm |
