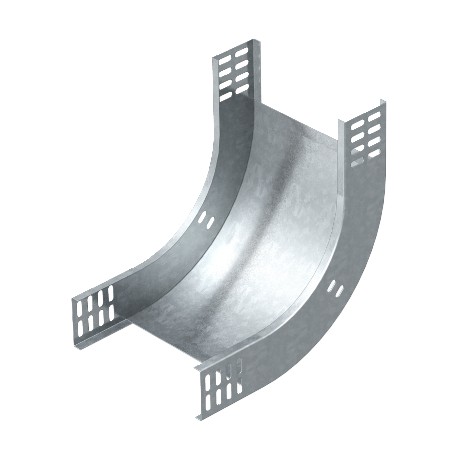

OBO BETTERMANN RBV 650 S FS RBV 650 S FS 7007025 OBO BETTERMANN 90° vertical bend rising, 60x500, Strip-galvanised, DIN EN 10147, Steel,..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

RBV 650 S FS 7007025 OBO BETTERMANN 90° vertical bend rising, 60x500, Strip-galvanised, DIN EN 10147, Steel,..

Name: RBV 650 S FS 7007025 OBO BETTERMANN 90° vertical bend rising, 60x500, Strip-galvanised, DIN EN 10147, Steel,..
Brand: OBO BETTERMANN
SKU: 7007025

Reference: RBV 650 S FS

Code: 7007025

Manufacturer: OBO BETTERMANN

Units per package: 1 Pcs.

Description:

90° vertical bend rising, 60x500, Strip-galvanised, DIN EN 10147, Steel, St Vertical curve 90° RBV 650 S FS, ascending 60x500 Steel, St, strip galvanized, DIN EN 10346 90° vertical bend, rising 60 FS. 90° rising vertical bend, for all cable tray types of 60 mm side height.

Categories:
Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 90° vertical bend rising, supplied by Obo Bettermann as RBV 650 S FS, is integrated into cable pathways to route tray systems upward along vertical surfaces. These components support heavy cable loads smoothly during elevation transitions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

Change of direction (EF005210): Rising vertically
Angle (EF001218): 90°
Suitable for cable tray height (EF004822): 60 mm
Suitable for cable tray width (EF004820): 500 mm
Material thickness (EF000386): 1 mm
Side perforation (EF001122): No
Bottom perforation (EF004545): No
NATO-mounting holes (EF006059): No
Model (EF000010): Coupler not included
Suitable for circuit integrity (EF007806): No
Material (EF002169): Steel
Stainless steel, pickled (EF006388): No
Surface protection (EF000139): Pre-galvanised

More info

▲

Bend (angle)	90°
Change of direction	Vertical rising
CO2 Footprint (GWP) Cradle-to-Gate	5,8557 kg CO2e / 1 Piece
Colour	zinc
Connector version	Without connectors
Dimension	60x500
Dimension B	500 mm
Dimension W	500 mm
Height	2 in
Height	60 mm
Maintain electrical functions	no
Material	Steel

Mounting perforation in base	no
NATO hole pattern	no
Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	no
Surface	Strip galvanized
Type	Bend, rigid
Type of connector, cable support system	Screwed
Wide-span version	no
Width	500 mm
Width	20 in
