View larger
Images are for illustrative purposes only. Please refer to data sheet for details

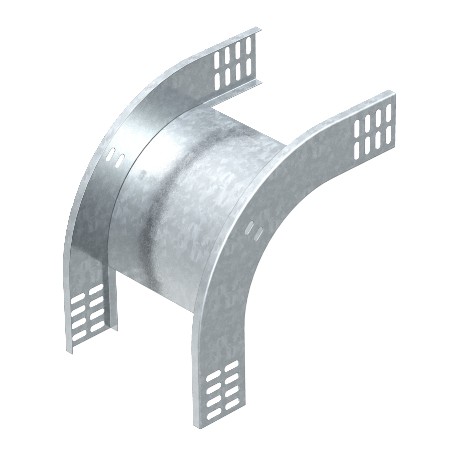

RBV 650 F FS 7007075 OBO BETTERMANN 90° vertical bend falling, 60x500, Strip-galvanised, DIN EN 10147, Steel..
RBV 650 F FS
7007075
OBO BETTERMANN
1 Pcs.
90° vertical bend falling, 60x500, Strip-galvanised, DIN EN 10147, Steel, St
Vertical bend 90° RBV 650 F FS, downward 60x500 Steel, St, strip galvanized, DIN EN 10346
90° vertical curve, 60 FS downward. 90° downward vertical bend for all cable types with a wing height of 60 mm.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
90° vertical bend, falling, for all cable tray types of 60 mm side height.
| Feature Name | Feature Value |
|---|---|
| Change of direction (EF005210) | Descending vertically |
| Angle (EF001218) | 90° |
| Suitable for cable tray height (EF004822) | 60 mm |
| Suitable for cable tray width (EF004820) | 500 mm |
| Material thickness (EF000386) | 1 mm |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Pre-galvanised |
