View larger

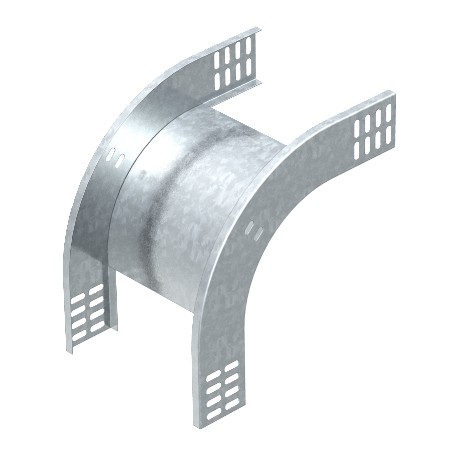

RBV 640 F FS 7007071 OBO BETTERMANN 90° vertical bend falling, 60x400, Strip-galvanised, DIN EN 10147, Steel..
RBV 640 F FS
7007071
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann RBV 640 F FS 90° vertical bend falling directs cable trays downward smoothly to accommodate shifting structural elevations. Technicians rely on these components to protect cabling from excessive tension during vertical drops.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical, falling
- CO2 Footprint (GWP) Cradle-to-Gate: 4,1006 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 60x400
- Dimension B: 400 mm
- Dimension W: 400 mm
- Height: 60 mm
- Height: 2 in
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,1006 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x400 |
| Dimension B | 400 mm |
| Dimension W | 400 mm |
| Height | 60 mm |
| Height | 2 in |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type | Bend, rigid |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 400 mm |
| Width | 16 in |
