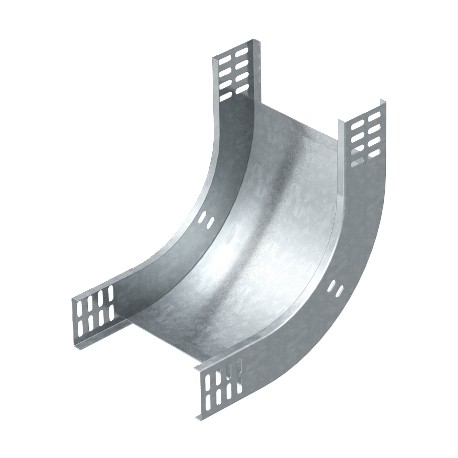

RBV 630 S FT 7007018 OBO BETTERMANN 90° vertical bend rising, 60x300, Hot-dip galvanised, DIN EN ISO 1461, S..
RBV 630 S FT
7007018
OBO BETTERMANN
1 Pcs.
90° vertical bend rising, 60x300, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
90° vertical bend, rising, 60 FT. 90° rising vertical bend, for all cable tray types of 60 mm side height.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 90° vertical bend rising junction helps installers route cable management systems upward across vertical building planes. This Obo Bettermann component (RBV 630 S FT) maintains structural support and pathway continuity.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical rising
- CO2 Footprint (GWP) Cradle-to-Gate: 3,5106 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 60x300
- Dimension B: 300 mm
- Height: 2 in
- Height: 60 mm
- Maintain electrical functions: yes
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,5106 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x300 |
| Dimension B | 300 mm |
| Height | 2 in |
| Height | 60 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 12 in |
| Width | 300 mm |
