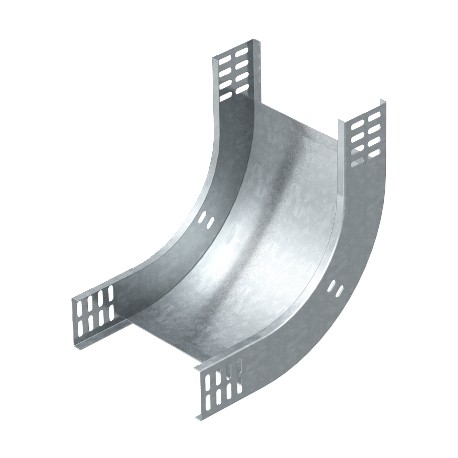

RBV 615 S FT 7007010 OBO BETTERMANN
RBV 615 S FT
7007010
OBO BETTERMANN
1 Pcs.
90° vertical bend, rising, 60 FT. 90° rising vertical bend, for all cable tray types of 60 mm side height.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,5168 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x150 |
| Dimension B | 150 mm |
| Height | 60 mm |
| Height | 2 in |
| Maintain electrical functions | yes |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 150 mm |
| Width | 6 in |
