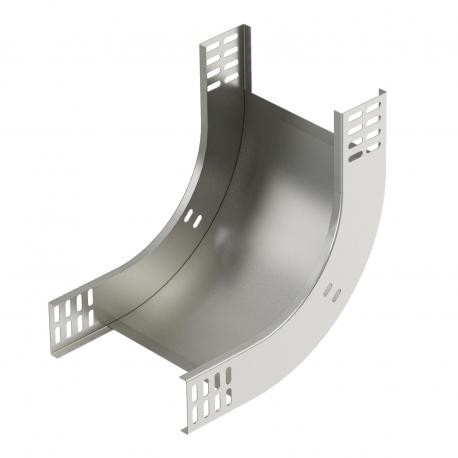

RBV 610 S VA4571 7006720 OBO BETTERMANN 90° vertical bend rising, 60x100, Stainless steel, grade 316 Ti, VA,..
RBV 610 S A4
7006720
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Crafted from durable alloy, the Obo Bettermann RBV 610 S A4 90° vertical bend rising accommodates upward directional shifts in corrosive or demanding industrial environments. Stainless steel cable fittings provide enhanced longevity and mechanical stability in heavy-duty processing plants and outdoor installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical rising
- CO2 Footprint (GWP) Cradle-to-Gate: 5,222 kg CO2e / 1 Piece
- Colour: stainless steel
- Connector version: Without connectors
- Dimension: 60x100
- Dimension B: 100 mm
- Height: 2 in
- Height: 60 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4571
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,222 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Connector version | Without connectors |
| Dimension | 60x100 |
| Dimension B | 100 mm |
| Height | 2 in |
| Height | 60 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Bright, treated |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 4 in |
| Width | 100 mm |
