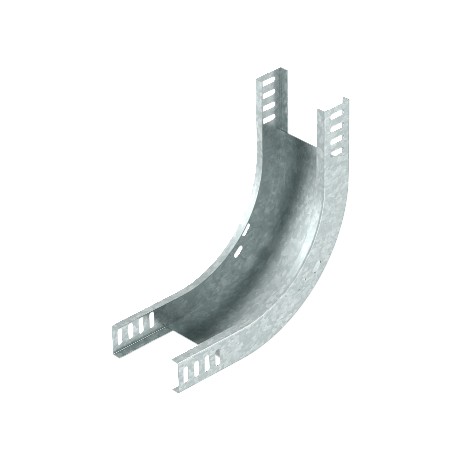

OBO BETTERMANN RBV 305 S FS RBV 305 S FS 7007170 OBO BETTERMANN 90° vertical bend rising, 35x50, Strip-galvanised, DIN EN 10147, Steel, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBV 305 S FS 7007170 OBO BETTERMANN 90° vertical bend rising, 35x50, Strip-galvanised, DIN EN 10147, Steel, ..

RBV 305 S FS

7007170

OBO BETTERMANN

1 Pcs.

90° vertical bend rising, 35x50, Strip-galvanised, DIN EN 10147, Steel, St

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann RBV 305 S FS is a 90-degree vertical bend rising fitting designed to transition cable trays seamlessly between different elevation planes. Such components maintain smooth bend radii to protect cables from stress and sharp angles along multi-tier routes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: RBV 305 S FS
  • Catalogue code: 7007170

More info

▲
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
