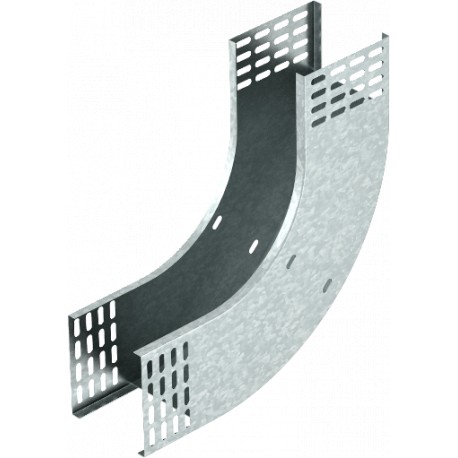

OBO BETTERMANN RBV 150 S FT RBV 150 S FT 7007327 OBO BETTERMANN 90° vertical bend rising, 110x500, Hot-dip galvanised, DIN EN ISO 1461, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBV 150 S FT 7007327 OBO BETTERMANN 90° vertical bend rising, 110x500, Hot-dip galvanised, DIN EN ISO 1461, ..

RBV 150 S FT

7007327

OBO BETTERMANN

1 Pcs.

90° vertical bend rising, 110x500, Hot-dip galvanised, DIN EN ISO 1461, Steel, St 90° vertical bend, rising FT. 90° rising vertical bend, for all cable tray types of 110 mm side height.

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 90° vertical bend rising fitting provides robust upward directional transitions for heavy cable tray networks. Manufactured by Obo Bettermann (RBV 150 S FT), it ensures dependable structural performance under load.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • Change of direction: Vertical rising
  • CO2 Footprint (GWP) Cradle-to-Gate: 7,4421 kg CO2e / 1 Piece
  • Colour: zinc
  • Connector version: Without connectors
  • Dimension: 110x500
  • Dimension B: 500 mm
  • Height: 110 mm
  • Height: 4 in
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: no
  • NATO hole pattern: no
  • Plate thickness: 1 mm
  • Rustproof steel, pickled: no
  • Side perforation: no

More info

▲
Bend (angle)90°
Change of directionVertical rising
CO2 Footprint (GWP) Cradle-to-Gate7,4421 kg CO2e / 1 Piece
Colourzinc
Connector versionWithout connectors
Dimension110x500
Dimension B500 mm
Height110 mm
Height4 in
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseno
NATO hole patternno
Plate thickness1 mm
Rustproof steel, pickledno
Side perforationno
SurfaceHot-dip galvanised
Type of connector, cable support systemScrewed
Wide-span versionno
Width500 mm
Width20 in
