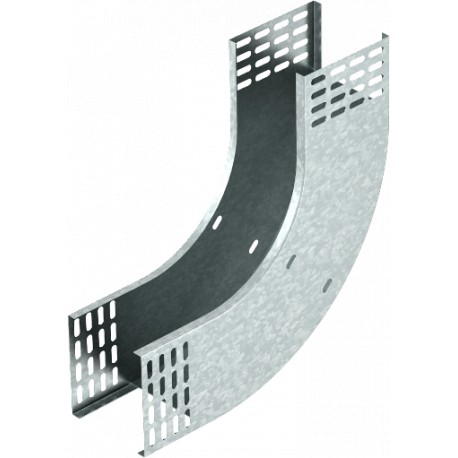

OBO BETTERMANN RBV 150 S FS RBV 150 S FS 7007326 OBO BETTERMANN 90° vertical bend rising, 110x500, Strip-galvanised, DIN EN 10147, Steel.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBV 150 S FS 7007326 OBO BETTERMANN 90° vertical bend rising, 110x500, Strip-galvanised, DIN EN 10147, Steel..

RBV 150 S FS

7007326

OBO BETTERMANN

1 Pcs.

90° vertical bend rising, 110x500, Strip-galvanised, DIN EN 10147, Steel, St Vertical curve 90° RBV 150 S FS, ascending 110x500 Steel, St, strip galvanized, DIN EN 10346 90° vertical curve, 110 FS ascending. 90° upward vertical bend for all cable types with a wing height of 110 mm.

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Transitioning cable runs upward along vertical planes is efficiently managed with a 90° vertical bend rising, designed to connect horizontal and vertical tray sections seamlessly. These specialized directional components ensure that power and control cables maintain safe curvature radii during elevation changes in industrial plants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: RBV 150 S FS
  • Catalogue code: 7007326
  • Catalogue title: RBV 150 S FS 7007326 OBO BETTERMANN 90° vertical bend rising, 110x500, Strip-galvanised, DIN EN 10147, Steel..
  • Product description: The vertical bend is pushed over the end of the cable tray and screwed tight. Fastening materials should be ordered separately.
  • Manufacturer summary: 90° vertical bend rising, 110x500, Strip-galvanised, DIN EN 10147, Steel, St Vertical curve 90° RBV 150 S FS, ascending 110x500 Steel, St, strip galvanized, DIN EN 10346 90° vertical curve, 110 FS ascending. 90° upward v

More info

▲
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.
