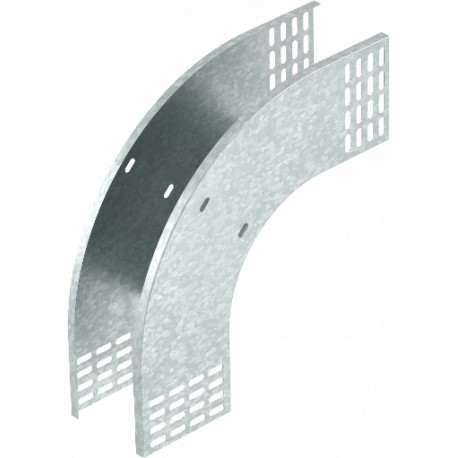

RBV 130 F FT 7007359 OBO BETTERMANN 90° vertical bend falling, 110x300, Hot-dip galvanised, DIN EN ISO 1461,..
RBV 130 F FT
7007359
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Constructed for industrial pathway routing, the Obo Bettermann RBV 130 F FT 90° vertical bend falling manages level changes in cable tray runs. Vertical bends are essential components in electrical installations for transitioning cable pathways securely between different elevations along walls and support structures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical, falling
- CO2 Footprint (GWP) Cradle-to-Gate: 4,6454 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 110x300
- Dimension B: 300 mm
- Height: 110 mm
- Height: 4 in
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,6454 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110x300 |
| Dimension B | 300 mm |
| Height | 110 mm |
| Height | 4 in |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 300 mm |
| Width | 12 in |
