View larger
Images are for illustrative purposes only. Please refer to data sheet for details

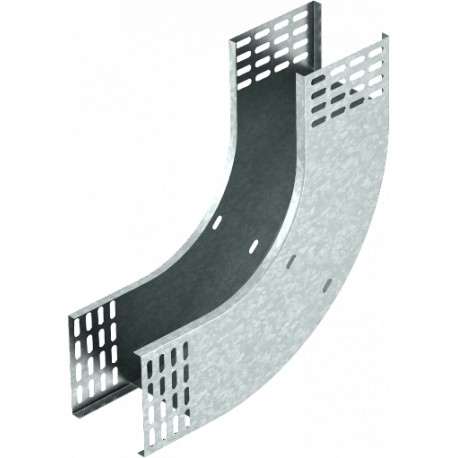

RBV 120 S FT 7007400 OBO BETTERMANN 90° vertical bend rising, 110x200, Hot-dip galvanised, DIN EN ISO 1461, ..
RBV 120 S FT
7007400
OBO BETTERMANN
1 Pcs.
90° vertical bend rising, 110x200, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Vertical curve 90° RBV 120 S FT, ascending 110x200 Steel, St, Hot-dip galvanized, DIN EN ISO 1461
90° vertical bend, rising FT. 90° rising vertical bend, for all cable tray types of 110 mm side height.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,0724 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110x200 |
| Dimension B | 200 mm |
| Height | 4 in |
| Height | 110 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 200 mm |
| Width | 8 in |
| Feature Name | Feature Value |
|---|---|
| Change of direction (EF005210) | Rising vertically |
| Angle (EF001218) | 90° |
| Suitable for cable tray height (EF004822) | 110 mm |
| Suitable for cable tray width (EF004820) | 200 mm |
| Material thickness (EF000386) | 1 mm |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Hot dip galvanized |
