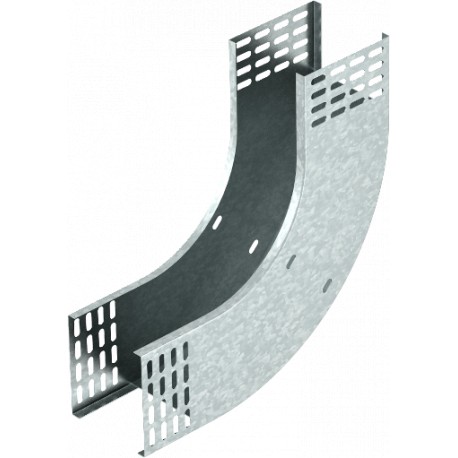

RBV 110 S FS 7007310 OBO BETTERMANN 90° vertical bend rising, 110x100, Strip-galvanised, DIN EN 10147, Steel..
RBV 110 S FS
7007310
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for streamlined electrical infrastructure, the Obo Bettermann RBV 110 S FS functions as a 90° vertical bend rising for commercial cable support runs. Cable tray risers bridge horizontal and vertical planes while preventing sharp cable bends that could compromise conductor integrity.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical rising
- CO2 Footprint (GWP) Cradle-to-Gate: 4,5458 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 110x100
- Dimension B: 100 mm
- Height: 110 mm
- Height: 4 in
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,5458 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110x100 |
| Dimension B | 100 mm |
| Height | 110 mm |
| Height | 4 in |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 4 in |
| Width | 100 mm |
