> OBO BETTERMANN > KTS cable support systems - OBO BETTERMANN > Rest sheet tray > 6040512

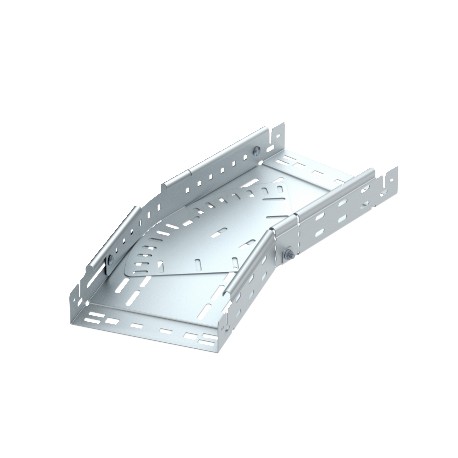

OBO BETTERMANN RBMV 660 FT RBMV 660 FT 6040512 OBO BETTERMANN Variable bend with quick connector, 60x600, Hot-dip galvanised, DIN EN IS.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBMV 660 FT 6040512 OBO BETTERMANN Variable bend with quick connector, 60x600, Hot-dip galvanised, DIN EN IS..

RBMV 660 FT

6040512

OBO BETTERMANN

1 Pcs.

Variable bend with quick connector, 60x600, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Curve, variable RBMV 660 FT, with quick connect 60x600 Steel, St, Hot-dipped galvanized, DIN EN ISO 1461 Magic 60 FT variable curve. Variable curve 0° - 90° with quick connection system. For all types of cable trays with a wing height of 60 mm.

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A variable bend provides flexible directional adjustment for horizontal cable tray runs, allowing installers to navigate irregular architectural obstacles. This heavy-duty steel fitting includes quick-connecting features and hot-dip galvanization for enhanced environmental protection.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Change of direction (EF005210): Horizontal
  • Angle (EF001218): Adjustable
  • Suitable for cable tray height (EF004822): 60 mm
  • Suitable for cable tray width (EF004820): 600 mm
  • Material thickness (EF000386): 1.5 mm
  • Side perforation (EF001122): Yes
  • Bottom perforation (EF004545): Yes
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Integrated coupler
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
Magic bend 0°-90°, variable, with quick connector system. For all cable tray types of 60 mm side height.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
