View larger
Images are for illustrative purposes only. Please refer to data sheet for details

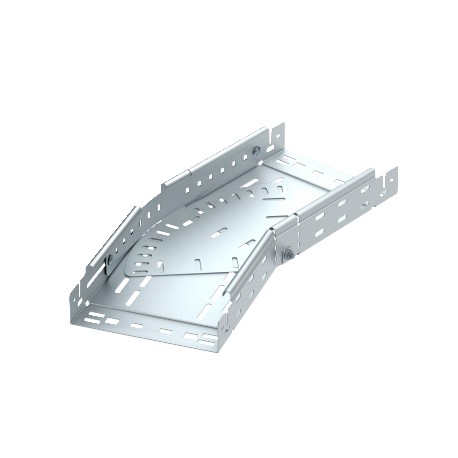

RBMV 660 FS 6040492 OBO BETTERMANN Variable bend with quick connector, 60x600, Strip-galvanised, DIN EN 1014..
RBMV 660 FS
6040492
OBO BETTERMANN
1 Pcs.
Variable bend with quick connector, 60x600, Strip-galvanised, DIN EN 10147, Steel, St
Curve, variable RBMV 660 FS, with quick connection 60x600 Steel, St, strip galvanized, DIN EN 10346
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Magic bend 0°-90°, variable, with quick connector system. For all cable tray types of 60 mm side height.
| Feature Name | Feature Value |
|---|---|
| Change of direction (EF005210) | Horizontal |
| Angle (EF001218) | Adjustable |
| Suitable for cable tray height (EF004822) | 60 mm |
| Suitable for cable tray width (EF004820) | 600 mm |
| Material thickness (EF000386) | 1.5 mm |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Integrated coupler |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Pre-galvanised |
