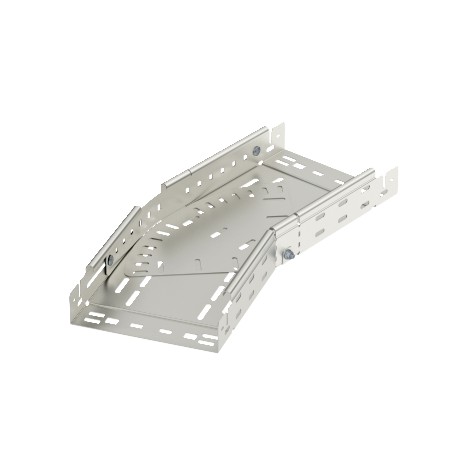

OBO BETTERMANN RBMV 620 A2 RBMV 620 A2 6040524 OBO BETTERMANN Variable bend with quick connector, 60x200, Stainless steel, grade 304, V.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBMV 620 A2 6040524 OBO BETTERMANN Variable bend with quick connector, 60x200, Stainless steel, grade 304, V..

RBMV 620 A2

6040524

OBO BETTERMANN

1 Pcs.

Variable bend with quick connector, 60x200, Stainless steel, grade 304, VA, 1.4301 Curve, variable RBMV 620 A2,with quick connection 60x200 Stainless steel 1.4301, A2, 1.4301,Polished, with post-treatment

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Magic bend 0°-90°, variable, with quick connector system. For all cable tray types of 60 mm side height.
ETIM for 6040524 Cable tray, ladder and wire basket systems (EC002400)
Feature Name Feature Value
Change of direction (EF005210) Horizontal
Angle (EF001218) Adjustable
Suitable for cable tray height (EF004822) 60 mm
Suitable for cable tray width (EF004820) 200 mm
Material thickness (EF000386) 1 mm
Side perforation (EF001122) Yes
Bottom perforation (EF004545) Yes
NATO-mounting holes (EF006059) No
Model (EF000010) Integrated coupler
Suitable for circuit integrity (EF007806) No
Material (EF002169) Stainless steel
Stainless steel, pickled (EF006388) No
Material quality (EF001257) Rustproof and acidproof steel
Surface protection (EF000139) Other
