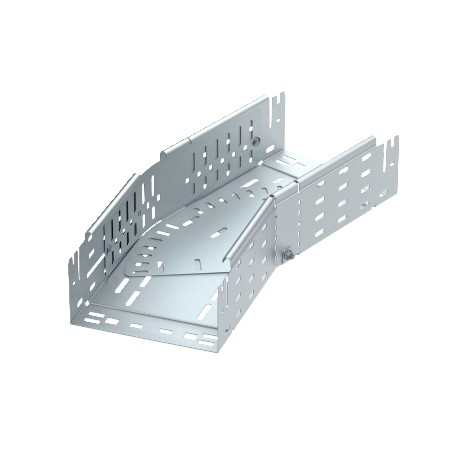

OBO BETTERMANN RBMV 110 FT RBMV 110 FT 6040700 OBO BETTERMANN Variable bend with quick connector, 110x100, Hot-dip galvanised, DIN EN I.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBMV 110 FT 6040700 OBO BETTERMANN Variable bend with quick connector, 110x100, Hot-dip galvanised, DIN EN I..

RBMV 110 FT

6040700

OBO BETTERMANN

1 Pcs.

Variable bend with quick connector, 110x100, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Bend, variable RBMV 110 FT, with quick connect 110x100 Steel, St, Hot-dipped galvanized, DIN EN ISO 1461 Magic 110 FT. variable curve Variable curve 0° - 90° with quick connection system. For all types of cable trays with a wing height of 110 mm.

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann variable bend RBMV 110 FT provides flexible directional adjustments for complex steel cable tray routes. Industrial installation technicians utilize variable angle connectors to custom-fit raceways around structural obstacles.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Change of direction (EF005210): Horizontal
  • Angle (EF001218): Adjustable
  • Suitable for cable tray height (EF004822): 110 mm
  • Suitable for cable tray width (EF004820): 100 mm
  • Material thickness (EF000386): 1 mm
  • Side perforation (EF001122): Yes
  • Bottom perforation (EF004545): Yes
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Integrated coupler
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
    • Surface protection (EF000139): Hot dip galvanized

More info

▲
Magic bend 0°-90°, variable, with quick connector system. For all cable tray types of 110 mm side height.
