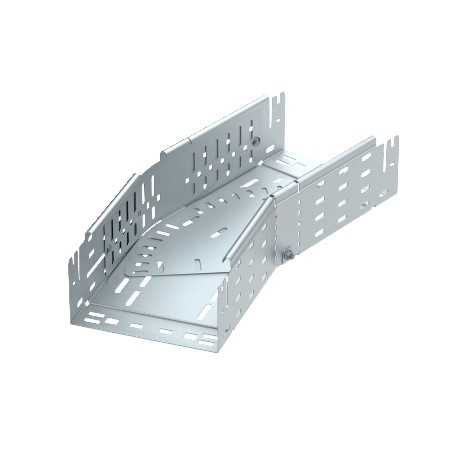

RBMV 110 FS 6040680 OBO BETTERMANN Variable bend with quick connector, 110x100, Strip-galvanised, DIN EN 101..
RBMV 110 FS
6040680
OBO BETTERMANN
1 Pcs.
Variable bend with quick connector, 110x100, Strip-galvanised, DIN EN 10147, Steel, St
Magic bend, variable 110 FS. Magic bend 0°–90°, variable, with quick connector system. For all cable tray types of 110 mm side height.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | Adjustable |
|---|---|
| Change of direction | Horizontal |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,8944 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 110x100 |
| Dimension B | 100 mm |
| Dimension L | 340 mm |
| Height | 110 mm |
| Maintain electrical functions | no |
| Material | Steel |
|---|---|
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Wide-span version | no |
| Width | 100 mm |
