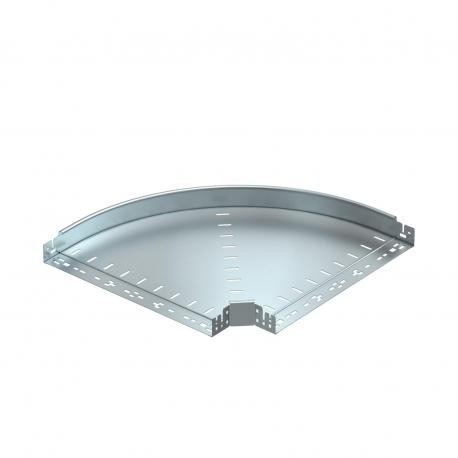

RBM 90 650 FS 6041140 OBO BETTERMANN 90° bend with quick connector, 60x500, Strip-galvanised, DIN EN 10147, ..
RBM 90 650 FS
6041140
OBO BETTERMANN
1 Pcs.
90° bend with quick connector, 60x500, Strip-galvanised, DIN EN 10147, Steel, St
90° Magic bend 60 FS. 90° bend with quick connector system. For all cable tray types of 60 mm side height.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Horizontal |
| CO2 Footprint (GWP) Cradle-to-Gate | 13,52 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x500 |
| Dimension B | 500 mm |
| Fire protection | Use of fire protection ceilings |
| Height | 60 mm |
| Height | 2 in |
| Maintain electrical functions | no |
| Material | Steel |
|---|---|
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1,25 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Wide-span version | no |
| Width | 500 mm |
| Width | 20 in |
