View larger
Images are for illustrative purposes only. Please refer to data sheet for details

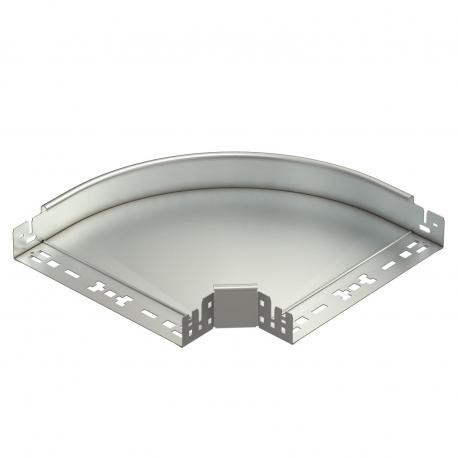

RBM 90 630 A2 6041186 OBO BETTERMANN 90° bend with quick connector, 60x300, Stainless steel, grade 304, VA, ..
RBM 90 630 A2
6041186
OBO BETTERMANN
1 Pcs.
90° bend with quick connector, 60x300, Stainless steel, grade 304, VA, 1.4301
90° Bend RBM 90 630 A2, with Quick Connect 60x300 Stainless Steel 1.4301, A2, 1.4301, Polished, with Post-Treatment
90° Magic 60 A2 curve. 90° curve with quick connection system. For all types of cable trays with a wing height of 60 mm.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
90° bend with quick connector system. For all cable tray types of 60 mm side height.
| Feature Name | Feature Value |
|---|---|
| Change of direction (EF005210) | Horizontal |
| Angle (EF001218) | 90° |
| Suitable for cable tray height (EF004822) | 60 mm |
| Suitable for cable tray width (EF004820) | 300 mm |
| Material thickness (EF000386) | 1.25 mm |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Integrated coupler |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Stainless steel, pickled (EF006388) | No |
| Material quality (EF001257) | Rustproof and acidproof steel |
| Surface protection (EF000139) | Other |
