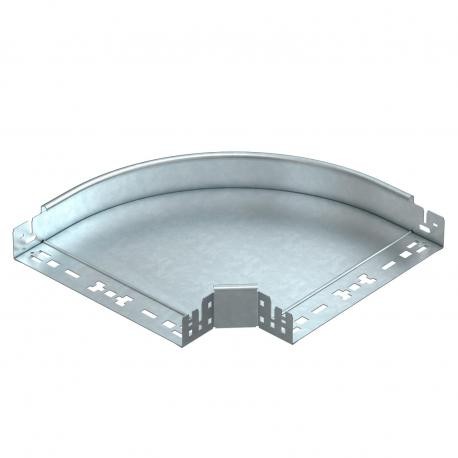

OBO BETTERMANN RBM 90 630 FT RBM 90 630 FT 6041156 OBO BETTERMANN 90° bend with quick connector, 60x300, Hot-dip galvanised, DIN EN ISO 1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBM 90 630 FT 6041156 OBO BETTERMANN 90° bend with quick connector, 60x300, Hot-dip galvanised, DIN EN ISO 1..

RBM 90 630 FT

6041156

OBO BETTERMANN

1 Pcs.

90° bend with quick connector, 60x300, Hot-dip galvanised, DIN EN ISO 1461, Steel, St 90° bend RBM 90 630 FT, with quick connection 60x300 Steel, St, Hot-dip galvanized, DIN EN ISO 1461 90° elbow Magic 60 FT

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Navigating horizontal pathway shifts in complex wire routing grids is simplified using the Obo Bettermann RBM 90 630 FT 90° bend with quick connector. Cable tray systems utilize horizontal bends to guide runs securely around corners while supporting continuous electrical infrastructure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Change of direction (EF005210): Horizontal
  • Angle (EF001218): 90°
  • Construction type (EF000767): Rigid bend
  • Suitable for cable tray height (EF004822): 60 mm
  • Suitable for cable tray width (EF004820): 300 mm
  • Material thickness (EF000386): 1.25 mm
  • Side perforation (EF001122): No
  • Bottom perforation (EF004545): No
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Integrated coupler
  • Suitable for circuit integrity (EF007806): Yes
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
90° bend with quick connector system. For all cable tray types of 60 mm side height.
