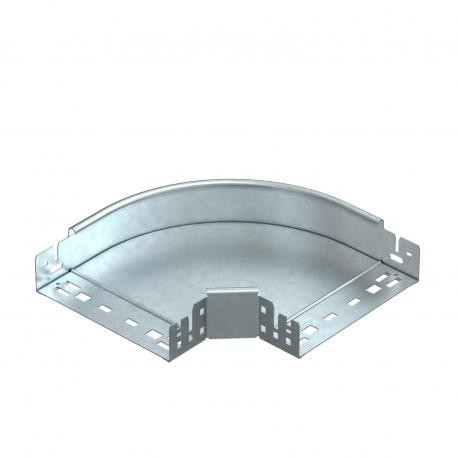

RBM 90 620 FT 6041154 OBO BETTERMANN 90° bend with quick connector, 60x200, Hot-dip galvanised, DIN EN ISO 1..
RBM 90 620 FT
6041154
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann 90° bend with quick connector (RBM 90 620 FT) provides secure horizontal right-angle routing for cable trays, featuring integrated connection hardware for efficient installation. It streamlines layout assembly while maintaining structural reliability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Horizontal
- CO2 Footprint (GWP) Cradle-to-Gate: 4,4903 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x200
- Dimension B: 200 mm
- Height: 60 mm
- Height: 2 in
- Maintain electrical functions: yes
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1,25 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Horizontal |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,4903 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x200 |
| Dimension B | 200 mm |
| Height | 60 mm |
| Height | 2 in |
| Maintain electrical functions | yes |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1,25 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type | Bend, rigid |
| Type of connector, cable support system | Click fastening |
| Wide-span version | no |
| Width | 8 in |
| Width | 200 mm |
