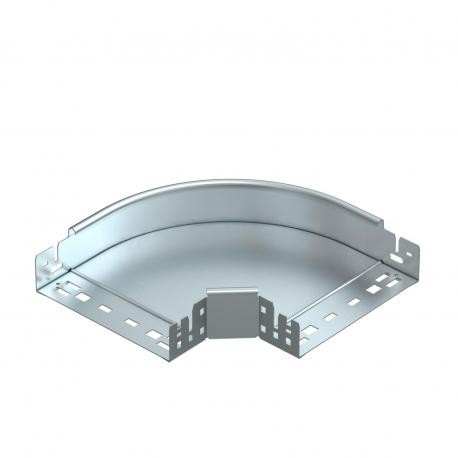

OBO BETTERMANN RBM 90 620 FS RBM 90 620 FS 6041134 OBO BETTERMANN 90° bend with quick connector, 60x200, Strip-galvanised, DIN EN 10147, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBM 90 620 FS 6041134 OBO BETTERMANN 90° bend with quick connector, 60x200, Strip-galvanised, DIN EN 10147, ..

RBM 90 620 FS

6041134

OBO BETTERMANN

1 Pcs.

90° bend with quick connector, 60x200, Strip-galvanised, DIN EN 10147, Steel, St 90° bend RBM 90 620 FS, with quick connection 60x200 Steel, St, strip galvanized, DIN EN 10346 90° Bend Magic 60 FS

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 90° bend with quick connector, specifically the Obo Bettermann model RBM 90 620 FS, is implemented in cable management routing to smoothly redirect runs around corners while maintaining structural continuity. Such fittings are widely used in industrial plants and commercial infrastructures to guide overhead or under-floor cable pathways.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Change of direction (EF005210): Horizontal
  • Angle (EF001218): 90°
  • Suitable for cable tray height (EF004822): 60 mm
  • Suitable for cable tray width (EF004820): 200 mm
  • Material thickness (EF000386): 1.25 mm
  • Side perforation (EF001122): No
  • Bottom perforation (EF004545): No
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Integrated coupler
  • Suitable for circuit integrity (EF007806): Yes
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Pre-galvanised

More info

▲
90° bend with quick connector system. For all cable tray types of 60 mm side height.
