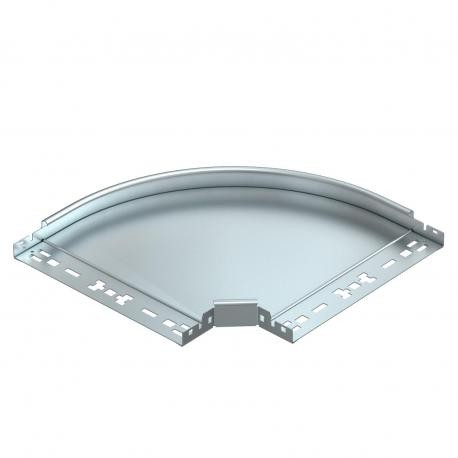

OBO BETTERMANN RBM 90 330 FS RBM 90 330 FS 6041014 OBO BETTERMANN 90° bend with quick connector, 35x300, Strip-galvanised, DIN EN 10147, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBM 90 330 FS 6041014 OBO BETTERMANN 90° bend with quick connector, 35x300, Strip-galvanised, DIN EN 10147, ..

RBM 90 330 FS

6041014

OBO BETTERMANN

1 Pcs.

90° bend with quick connector, 35x300, Strip-galvanised, DIN EN 10147, Steel, St 90° bend RBM 90 330 FS, with quick connection 35x300 Steel, St, strip galvanized, DIN EN 10346 Magic 35 FS 90° Curve

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
90° bend with quick connector system. For all cable tray types of 35 mm side height.
ETIM for 6041014 Cable tray, ladder and wire basket systems (EC002400)
Feature Name Feature Value
Change of direction (EF005210) Horizontal
Angle (EF001218) 90°
Suitable for cable tray height (EF004822) 35 mm
Suitable for cable tray width (EF004820) 300 mm
Material thickness (EF000386) 1.25 mm
Side perforation (EF001122) No
Bottom perforation (EF004545) No
NATO-mounting holes (EF006059) No
Model (EF000010) Integrated coupler
Suitable for circuit integrity (EF007806) No
Material (EF002169) Steel
Stainless steel, pickled (EF006388) No
Surface protection (EF000139) Pre-galvanised
