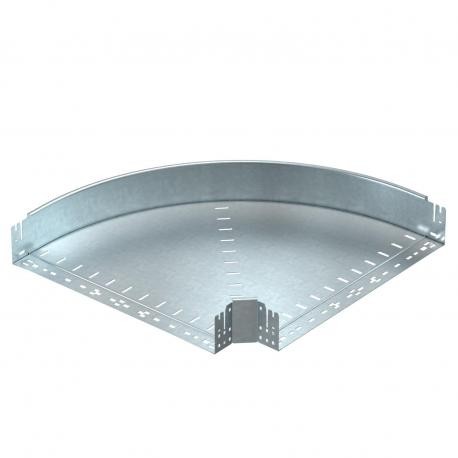

OBO BETTERMANN RBM 90 160 FT RBM 90 160 FT 6041870 OBO BETTERMANN 90° bend with quick connector, 110x600, Hot-dip galvanised, DIN EN ISO .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBM 90 160 FT 6041870 OBO BETTERMANN 90° bend with quick connector, 110x600, Hot-dip galvanised, DIN EN ISO ..

RBM 90 160 FT

6041870

OBO BETTERMANN

1 Pcs.

90° bend with quick connector, 110x600, Hot-dip galvanised, DIN EN ISO 1461, Steel, St 90° bend RBM 90 160 FT, with quick connect 110x600 Steel, St, Hot-dip galvanized, DIN EN ISO 1461 90° Magic 110 FT bend. 90° curve with quick connection system. For all types of cable trays with a wing height of 110 mm.

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for large-scale routing requirements, the Obo Bettermann RBM 90 160 FT horizontal bend enables 90-degree directional turns in extensive cable tray networks. Hot-dip galvanized steel provides high durability and corrosion resistance, making it suitable for demanding industrial and commercial facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Change of direction (EF005210): Horizontal
  • Angle (EF001218): 90°
  • Suitable for cable tray height (EF004822): 110 mm
  • Suitable for cable tray width (EF004820): 600 mm
  • Material thickness (EF000386): 1.25 mm
  • Side perforation (EF001122): No
  • Bottom perforation (EF004545): No
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Integrated coupler
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
90° bend with quick connector system. For all cable tray types of 110 mm side height.
