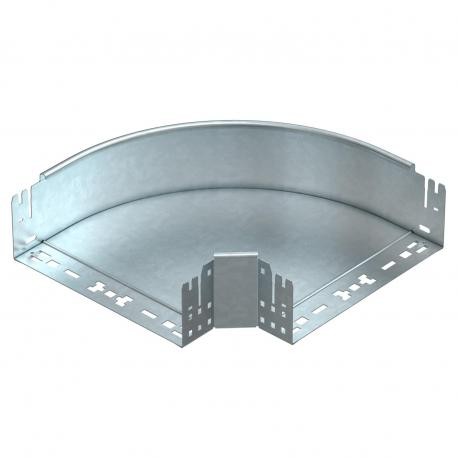

OBO BETTERMANN RBM 90 130 FT RBM 90 130 FT 6041864 OBO BETTERMANN 90° bend with quick connector, 110x300, Hot-dip galvanised, DIN EN ISO .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBM 90 130 FT 6041864 OBO BETTERMANN 90° bend with quick connector, 110x300, Hot-dip galvanised, DIN EN ISO ..

RBM 90 130 FT

6041864

OBO BETTERMANN

1 Pcs.

90° bend with quick connector, 110x300, Hot-dip galvanised, DIN EN ISO 1461, Steel, St 90° bend RBM 90 130 FT, with quick connect 110x300 Steel, St, Hot-dip galvanized, DIN EN ISO 1461 90° Magic 110 FT bend. 90° curve with quick connection system. For all types of cable trays with a wing height of 110 mm.

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann RBM 90 130 FT is a heavy-duty metal bend built to facilitate precise 90-degree horizontal redirections in industrial cable support grids. These components preserve the correct bend radius for heavy cable bundles to prevent signal loss or mechanical strain. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Change of direction (EF005210): Horizontal
  • Angle (EF001218): 90°
  • Suitable for cable tray height (EF004822): 110 mm
  • Suitable for cable tray width (EF004820): 300 mm
  • Material thickness (EF000386): 1.25 mm
  • Side perforation (EF001122): No
  • Bottom perforation (EF004545): No
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Integrated coupler
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
90° bend with quick connector system. For all cable tray types of 110 mm side height.
