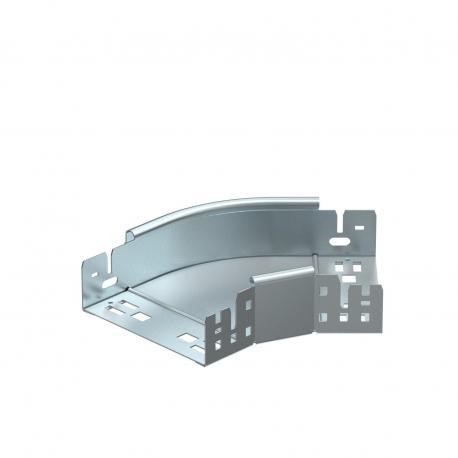

OBO BETTERMANN RBM 45 615 FS RBM 45 615 FS 6041042 OBO BETTERMANN 45° bend with quick connector, 60x150, Strip-galvanised, DIN EN 10147, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBM 45 615 FS 6041042 OBO BETTERMANN 45° bend with quick connector, 60x150, Strip-galvanised, DIN EN 10147, ..

RBM 45 615 FS

6041042

OBO BETTERMANN

1 Pcs.

45° bend with quick connector, 60x150, Strip-galvanised, DIN EN 10147, Steel, St 45° bend RBM 45 615 FS, with quick connection 60x150 Steel, St, strip galvanized, DIN EN 10346 45° Bend Magic 60 FS

Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
45° bend with quick connector system. For all cable tray types of 60 mm side height.
ETIM for 6041042 Cable tray, ladder and wire basket systems (EC002400)
Feature Name Feature Value
Change of direction (EF005210) Horizontal
Angle (EF001218) 45°
Suitable for cable tray height (EF004822) 60 mm
Suitable for cable tray width (EF004820) 150 mm
Material thickness (EF000386) 1.25 mm
Side perforation (EF001122) No
Bottom perforation (EF004545) No
NATO-mounting holes (EF006059) No
Model (EF000010) Integrated coupler
Suitable for circuit integrity (EF007806) Yes
Material (EF002169) Steel
Stainless steel, pickled (EF006388) No
Surface protection (EF000139) Pre-galvanised
