View larger
Images are for illustrative purposes only. Please refer to data sheet for details

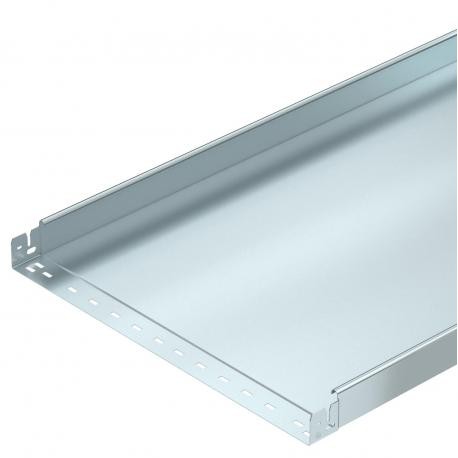

MKSMU 660 FS 6059243 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 60x600x3050, Strip-galvan..
MKSMU 660 FS
6059243
OBO BETTERMANN
3 m.
Cable tray MKSMU unperf. with quick connector, 60x600x3050, Strip-galvanised, DIN EN 10147, Steel, St
Cable tray MKS-Magic® 60, unperforated FS. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 13,5118 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x600x3050 |
| Dimension B | 600 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
|---|---|
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 1.75 m | 1,25 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,5 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 35800 mm² |
| Usable cross-section | 358 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 600 mm |
| With cover | no |
