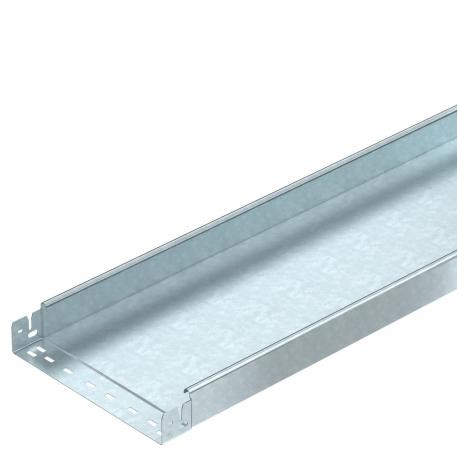

MKSMU 630 FT 6059254 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 60x300x3050, Hot-dip galv..
MKSMU 630 FT
6059254
OBO BETTERMANN
3 m.
Cable tray MKSMU unperf. with quick connector, 60x300x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Cable tray MKS-Magic® 60, unperforated FT. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Unperforated cable tray Obo Bettermann MKSMU 630 FT delivers secure containment for sensitive wiring that requires full protection from dust and external environmental elements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 8,3883 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x300x3050
- Dimension B: 300 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
- Support spacing 1.5 m: 1,5 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 8,3883 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x300x3050 |
| Dimension B | 300 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
|---|---|
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 1.75 m | 1,25 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,5 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 17800 mm² |
| Usable cross-section | 178 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 300 mm |
| With cover | no |
