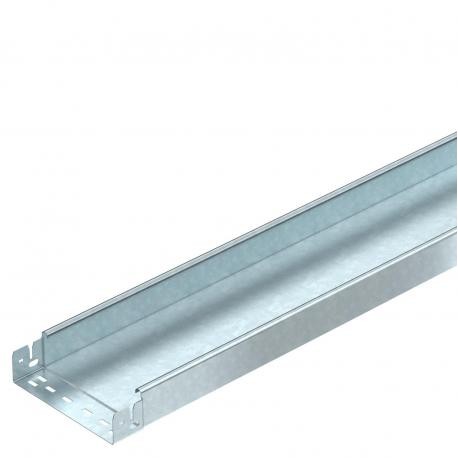

OBO BETTERMANN MKSMU 620 FT MKSMU 620 FT 6059252 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 60x200x3050, Hot-dip galv.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKSMU 620 FT 6059252 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 60x200x3050, Hot-dip galv..

MKSMU 620 FT

6059252

OBO BETTERMANN

3 m.

Cable tray MKSMU unperf. with quick connector, 60x200x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cable tray MKS-Magic® 60, unperforated FT. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Hot-dip galvanized for enhanced weather resistance, this Obo Bettermann MKSMU 620 FT cable tray secures and guides industrial wiring layouts. Solid-bottom cable trays are frequently deployed where extra protection from dust and debris is required.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 6,4947 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 60x200x3050
  • Dimension B: 200 mm
  • Height: 60 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: no
  • NATO hole pattern: no
  • Plate thickness: 1 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Support spacing 1.5 m: 1,5 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate6,4947 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension60x200x3050
Dimension B200 mm
Height60 mm
Length3050 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseno
NATO hole patternno
Plate thickness1 mm
Rustproof steel, pickledno
Side perforationno
Support spacing 1.5 m1,5 kN/m
Support spacing 1.75 m1,25 kN/m
Support spacing 2.0 m1 kN/m
Support spacing 2.5 m0,5 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section11800 mm²
Usable cross-section118 cm²
Usable length3000 mm
Wide-span versionno
Width200 mm
With coverno
