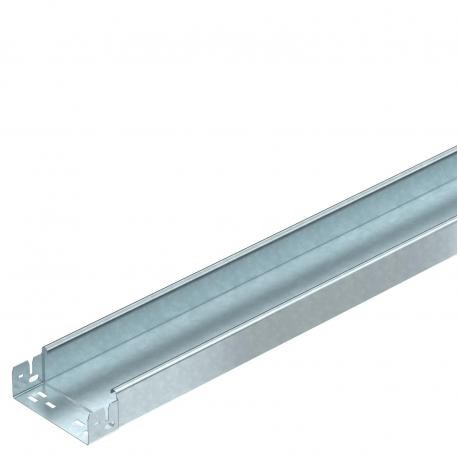

MKSMU 615 FT 6059250 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 60x150x3050, Hot-dip galv..
MKSMU 615 FT
6059250
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Solid-base cable trays are utilized in industrial electrical networks to keep wiring completely shielded from environmental contamination and particulate buildup. The Obo Bettermann MKSMU 615 FT is designed with integrated connection points to streamline mechanical mounting.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 6,7341 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x150x3050
- Dimension B: 150 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
- Support spacing 1.5 m: 1,5 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 6,7341 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x150x3050 |
| Dimension B | 150 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
|---|---|
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 1.75 m | 1,25 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,5 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 88 cm² |
| Usable cross-section | 8800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 150 mm |
| With cover | no |
