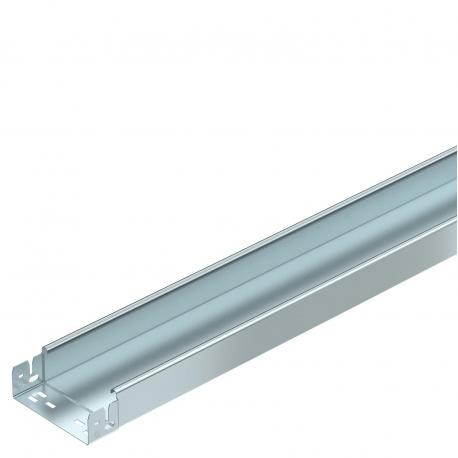

MKSMU 615 FS 6059232 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 60x150x3050, Strip-galvan..
MKSMU 615 FS
6059232
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Obo Bettermann MKSMU 615 FS cable tray MKSMU unperf. with quick connector, 60x150x3050, Strip-galvan.. acts as a sturdy structural channel for supporting and protecting electrical cables in professional setups. Unperforated trays provide maximum defense against dust, moisture, and falling debris for enclosed cabling runs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 5,3081 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x150x3050
- Dimension B: 150 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
- Support spacing 1.5 m: 1,5 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 5,3081 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x150x3050 |
| Dimension B | 150 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
|---|---|
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 1.75 m | 1,25 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,5 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 8800 mm² |
| Usable cross-section | 88 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 150 mm |
| With cover | no |
