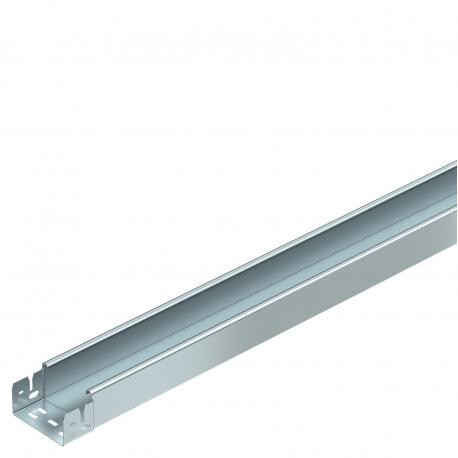

OBO BETTERMANN MKSMU 610 FS MKSMU 610 FS 6059230 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 60x100x3050, Strip-galvan.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKSMU 610 FS 6059230 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 60x100x3050, Strip-galvan..

MKSMU 610 FS

6059230

OBO BETTERMANN

3 m.

Cable tray MKSMU unperf. with quick connector, 60x100x3050, Strip-galvanised, DIN EN 10147, Steel, St Cable tray MKS-Magic® 60, unperforated FS. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Obo Bettermann, the MKSMU 610 FS is an unperforated cable tray used to securely route and protect cabling across commercial and industrial installations. Cable trays provide organized mechanical support and cable management in infrastructure layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 4,4133 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 60x100x3050
  • Dimension B: 100 mm
  • Height: 60 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: no
  • NATO hole pattern: no
  • Plate thickness: 1 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Support spacing 1.5 m: 1,5 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate4,4133 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension60x100x3050
Dimension B100 mm
Height60 mm
Length3050 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseno
NATO hole patternno
Plate thickness1 mm
Rustproof steel, pickledno
Side perforationno
Support spacing 1.5 m1,5 kN/m
Support spacing 1.75 m1,25 kN/m
Support spacing 2.0 m1 kN/m
Support spacing 2.5 m0,5 kN/m
SurfaceStrip galvanized
Type of connector, cable support systemClick fastening
Usable cross-section58 cm²
Usable cross-section5800 mm²
Usable length3000 mm
Wide-span versionno
Width100 mm
With coverno
