View larger
Images are for illustrative purposes only. Please refer to data sheet for details

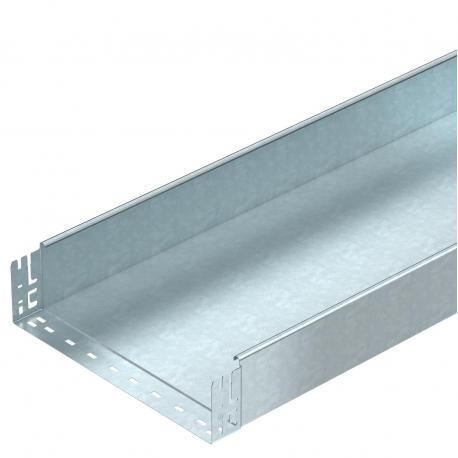

MKSMU 140 FT 6059407 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 110x400x3050, Hot-dip gal..
MKSMU 140 FT
6059407
OBO BETTERMANN
3 m.
Cable tray MKSMU unperf. with quick connector, 110x400x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Cable tray MKS-Magic® 110, unperforated FT. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 13,7215 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 110x400x3050 |
| Dimension B | 400 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
|---|---|
| Support spacing 1.5 m | 1,85 kN/m |
| Support spacing 2.0 m | 1,3 kN/m |
| Support spacing 2.5 m | 0,75 kN/m |
| Support spacing 3.0 m | 0,6 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 43800 mm² |
| Usable cross-section | 438 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 400 mm |
| With cover | no |
