OBO BETTERMANN MKSMU 130 FS MKSMU 130 FS 6059388 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 110x300x3050, Strip-galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

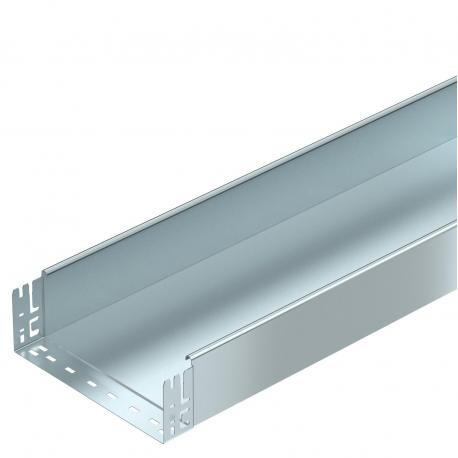

MKSMU 130 FS 6059388 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 110x300x3050, Strip-galva..

MKSMU 130 FS

6059388

OBO BETTERMANN

3 m.

Cable tray MKSMU unperf. with quick connector, 110x300x3050, Strip-galvanised, DIN EN 10147, Steel, St MKSMU MKSMU 130 FS cable tray, s/perforate, needle. 110x300x3050 Steel, St, strip galvanized, DIN EN 10346 MKS-Magic® 110 non-perforated FS cable tray. Undrilled cable tray with integrated quick fixing system. The useful length of the cable tray is 3,000 mm.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for rapid assembly without loose hardware, the Obo Bettermann MKSMU 130 FS cable tray features an unperforated profile and an integrated quick connector. Solid-bottom trays shield sensitive data and low-voltage control lines from electromagnetic interference and dust accumulation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Part number: MKSMU 130 FS
  • Catalogue code: 6059388

More info

▲
Unperforated cable tray with quick connection system, including all the relevant connection components for time-saving and economic installation.
The stock length is 3,050 mm, the usable length when combined is 3,000 mm
The spring element FED 60 can be ordered separately as an accessory part (spare) for the Magic cable trays with a side height of 60 mm, 85 mm and 110 mm under the article number 6068859.
The continuous equipotential bonding is guaranteed without additional components.
VDE-tested cable tray system.
