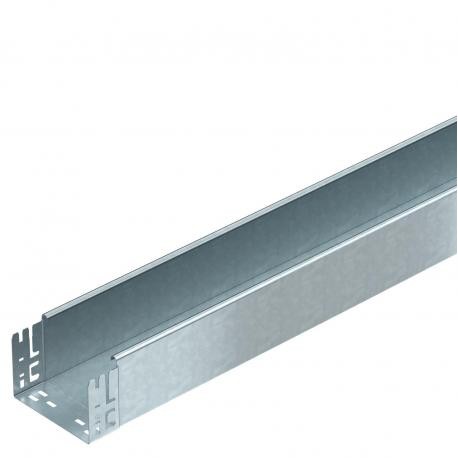

OBO BETTERMANN MKSMU 115 FT MKSMU 115 FT 6059401 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 110x150x3050, Hot-dip gal.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKSMU 115 FT 6059401 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 110x150x3050, Hot-dip gal..

MKSMU 115 FT

6059401

OBO BETTERMANN

3 m.

Cable tray MKSMU unperf. with quick connector, 110x150x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St MKSMU MKSMU 115 FT cable tray, s/perforate, needle. 110x150x3050 Steel, St,Hot-dip galvanized, DIN EN ISO 1461 Cable tray MKS-Magic® 110, unperforated FT. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Supplied as an Obo Bettermann MKSMU 115 FT unperforated cable tray with a quick connector, this metallic raceway provides enclosed routing for sensitive power and data circuits. Unperforated trays shield enclosed cables from environmental debris and electromagnetic interference.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 110 mm
  • Width (EF000008): 150 mm
  • Material thickness (EF000386): 1 mm
  • Length (EF001438): 3050 mm
  • Working length (EF006318): 3000 mm
  • Useful cross section (EF005140): 16100 mm²
  • With cover (EF007965): No
  • Side perforation (EF001122): No
  • Bottom perforation (EF004545): No
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Integrated coupler
  • Type of connector (EF000141): Click in
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized
  • Weight (EF000167): 3.4 kg/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate7,4317 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension110x150x3050
Dimension B150 mm
Height110 mm
Length3050 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseno
NATO hole patternno
Plate thickness1 mm
Rustproof steel, pickledno
Side perforationno
Support spacing 1.5 m1,85 kN/m
Support spacing 2.0 m1,3 kN/m
Support spacing 2.5 m0,75 kN/m
Support spacing 3.0 m0,6 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section161 cm²
Usable cross-section16100 mm²
Usable length3000 mm
Wide-span versionno
Width150 mm
With coverno
