View larger
Images are for illustrative purposes only. Please refer to data sheet for details

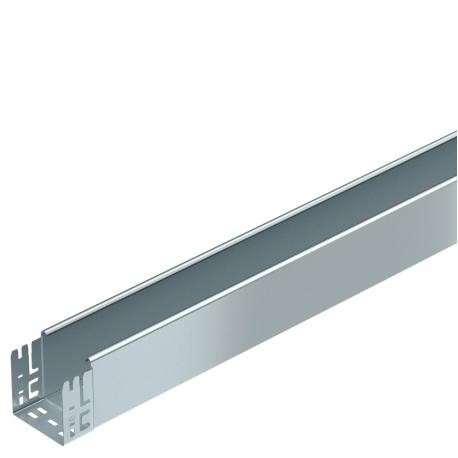

MKSMU 110 FS 6059382 OBO BETTERMANN Cable tray MKSMU unperf. with quick connector, 110x100x3050, Strip-galva..
MKSMU 110 FS
6059382
OBO BETTERMANN
3 m.
Cable tray MKSMU unperf. with quick connector, 110x100x3050, Strip-galvanised, DIN EN 10147, Steel, St
MKSMU MKSMU 110 FS cable tray, s/drill, needle. 110x100x3050 Steel, St, galvanized in strip, DIN EN 10346
Cable tray MKS-Magic® 110, unperforated FS. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 6,2071 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 110x100x3050 |
| Dimension B | 100 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
|---|---|
| Support spacing 1.5 m | 1,85 kN/m |
| Support spacing 2.0 m | 1,3 kN/m |
| Support spacing 2.5 m | 0,75 kN/m |
| Support spacing 3.0 m | 0,6 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 10800 mm² |
| Usable cross-section | 108 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 100 mm |
| With cover | no |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 110 mm |
| Width (EF000008) | 100 mm |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 3050 mm |
| Working length (EF006318) | 3000 mm |
| Useful cross section (EF005140) | 10800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Integrated coupler |
| Type of connector (EF000141) | Click in |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 2.7 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 1850 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1300 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 750 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 600 |
