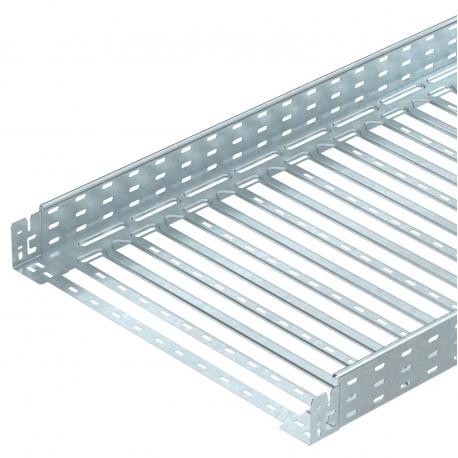

MKSM 860 FT 6059109 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 85x600x3050, Hot-dip gal..
MKSM 860 FT
6059109
OBO BETTERMANN
3 m.
Cable tray MKSM perforated with quick connector, 85x600x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
MKSM cable tray, perforated, with needle. connector , 85x600x3050, hot-dip galvanised steel, DIN EN ISO 1461
Cable tray MKS-Magic® 85 FT. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Perforated cable tray Obo Bettermann MKSM 860 FT offers heavy-duty structural support for extensive cable installations in commercial and industrial facilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 13,734 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 85x600x3050
- Dimension B: 600 mm
- Dimension L: 480 mm
- Dimension x: 496 mm
- Dimension y: 562 mm
- Height: 85 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 13,734 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 85x600x3050 |
| Dimension B | 600 mm |
| Dimension L | 480 mm |
| Dimension x | 496 mm |
| Dimension y | 562 mm |
| Height | 85 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 1,4 kN/m |
| Support spacing 2.0 m | 1,1 kN/m |
| Support spacing 2.5 m | 0,85 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 508 cm² |
| Usable cross-section | 50800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 600 mm |
| With cover | no |
