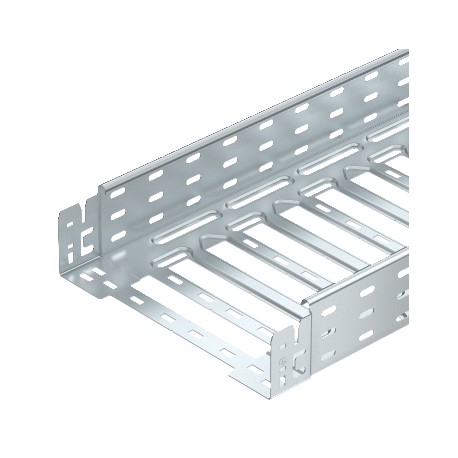

MKSM 850 FS 6059090 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 85x500x3050, Strip-galva..
MKSM 850 FS
6059090
OBO BETTERMANN
3 Pcs.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann perforated cable tray with quick connector (part number MKSM 850 FS) provides a reliable raceway system designed to support and organize medium-to-heavy cable runs in industrial facilities. Quick connectors allow fast mechanical locking during installation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 12,4585 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 85x500x3050
- Dimension B: 500 mm
- Dimension L: 380 mm
- Dimension x: 396 mm
- Dimension y: 462 mm
- Height: 85 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 12,4585 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 85x500x3050 |
| Dimension B | 500 mm |
| Dimension L | 380 mm |
| Dimension x | 396 mm |
| Dimension y | 462 mm |
| Height | 85 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| NEMA load class | 8A |
|---|---|
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 1,4 kN/m |
| Support spacing 2.0 m | 1,1 kN/m |
| Support spacing 2.5 m | 0,85 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 423 cm² |
| Usable cross-section | 42300 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 500 mm |
| With cover | no |
