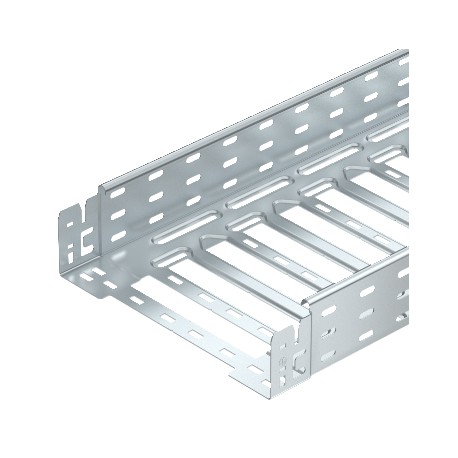

OBO BETTERMANN MKSM 840 FS MKSM 840 FS 6059088 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 85x400x3050, Strip-galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKSM 840 FS 6059088 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 85x400x3050, Strip-galva..

MKSM 840 FS

6059088

OBO BETTERMANN

3 m.

Cable tray MKSM perforated with quick connector, 85x400x3050, Strip-galvanised, DIN EN 10147, Steel, St Cable tray MKS-Magic® 85 FS. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Perforated cable trays such as the Obo Bettermann MKSM 840 FS serve as foundational support systems for routing electrical and communication cabling throughout industrial facilities. The integrated connector design allows for fast, secure connections between tray sections.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 10,6672 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 85x400x3050
  • Dimension B: 400 mm
  • Dimension L: 280 mm
  • Dimension x: 296 mm
  • Dimension y: 362 mm
  • Height: 85 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate10,6672 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension85x400x3050
Dimension B400 mm
Dimension L280 mm
Dimension x296 mm
Dimension y362 mm
Height85 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
NEMA load class8A
Plate thickness1 mm
Rustproof steel, pickledno
Side perforationyes
Sprinkler system useyes
Support spacing 1.5 m1,5 kN/m
Support spacing 2.0 m1,25 kN/m
Support spacing 2.5 m1 kN/m
SurfaceStrip galvanized
Type of connector, cable support systemClick fastening
Usable cross-section338 cm²
Usable cross-section33800 mm²
Usable length3000 mm
Wide-span versionno
Width400 mm
With coverno
