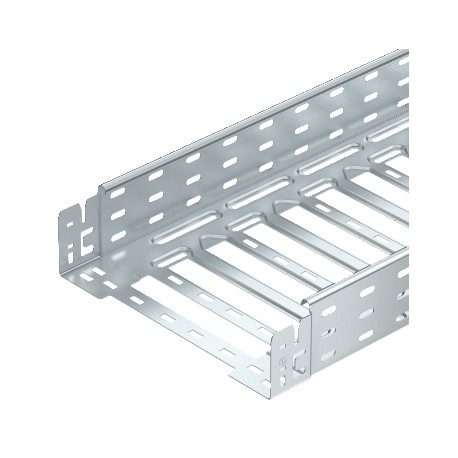

MKSM 830 FS 6059086 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 85x300x3050, Strip-galva..
MKSM 830 FS
6059086
OBO BETTERMANN
3 Pcs.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The MKSM 830 FS from Obo Bettermann is a perforated cable tray featuring a quick connector system, designed to streamline cable routing and organization in electrical infrastructure. Tray systems like this provide essential mechanical support and airflow for complex wiring networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 8,8784 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 85x300x3050
- Dimension B: 300 mm
- Dimension L: 180 mm
- Dimension x: 196 mm
- Dimension y: 262 mm
- Height: 85 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 8,8784 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 85x300x3050 |
| Dimension B | 300 mm |
| Dimension L | 180 mm |
| Dimension x | 196 mm |
| Dimension y | 262 mm |
| Height | 85 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| NEMA load class | 8A |
|---|---|
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 2.0 m | 1,25 kN/m |
| Support spacing 2.5 m | 1 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 25300 mm² |
| Usable cross-section | 253 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 300 mm |
| With cover | no |
