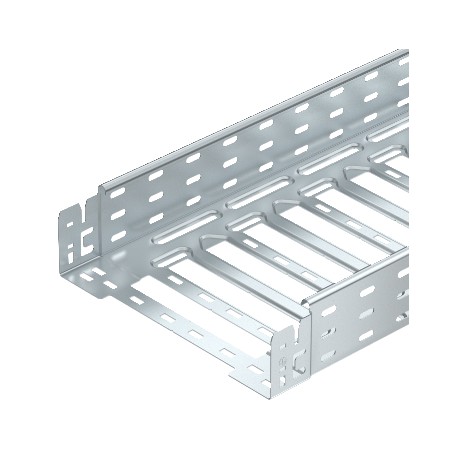

MKSM 820 FT 6059101 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 85x200x3050, Hot-dip gal..
MKSM 820 FT
6059101
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann MKSM 820 FT cable tray MKSM perforated with quick connector, 85x200x3050, Hot-dip gal.. delivers reliable structural support for running cables along walls and ceilings in harsh industrial environments. Perforated profiles ensure proper ventilation while keeping wire harnesses secure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 7,1348 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 85x200x3050
- Dimension B: 200 mm
- Dimension L: 80 mm
- Dimension x: 96 mm
- Dimension y: 162 mm
- Height: 85 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,1348 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 85x200x3050 |
| Dimension B | 200 mm |
| Dimension L | 80 mm |
| Dimension x | 96 mm |
| Dimension y | 162 mm |
| Height | 85 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 1,7 kN/m |
| Support spacing 2.0 m | 1,35 kN/m |
| Support spacing 2.5 m | 1 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 18600 mm² |
| Usable cross-section | 186 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 200 mm |
| With cover | no |
