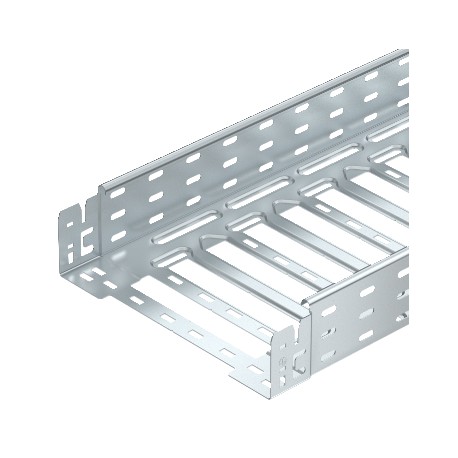

OBO BETTERMANN MKSM 810 FS MKSM 810 FS 6059080 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 85x100x3050, Strip-galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKSM 810 FS 6059080 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 85x100x3050, Strip-galva..

MKSM 810 FS

6059080

OBO BETTERMANN

3 Pcs.

Cable tray MKSM perforated with quick connector, 85x100x3050, Strip-galvanised, DIN EN 10147, Steel, St Cable tray MKS-Magic® 85 FS. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Perforated cable tray Obo Bettermann MKSM 810 FS acts as a durable metallic trough for supporting control lines and power cables across complex plant configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 5,3076 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 85x100x3050
  • Dimension B: 100 mm
  • Dimension L: 30 mm
  • Dimension y: 62 mm
  • Height: 85 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes
  • NATO hole pattern: no

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate5,3076 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension85x100x3050
Dimension B100 mm
Dimension L30 mm
Dimension y62 mm
Height85 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
NEMA load class8A
Plate thickness1 mm
Rustproof steel, pickledno
Side perforationyes
Support spacing 1.5 m1,7 kN/m
Support spacing 2.0 m1,35 kN/m
Support spacing 2.5 m1 kN/m
SurfaceStrip galvanized
Type of connector, cable support systemClick fastening
Usable cross-section8300 mm²
Usable cross-section83 cm²
Usable length3000 mm
Wide-span versionno
Width100 mm
With coverno
