View larger

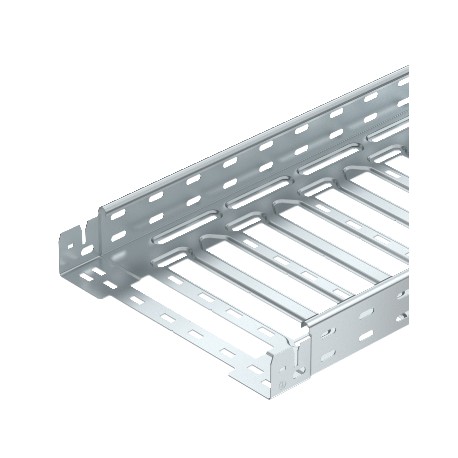

MKSM 660 FT 6059032 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 60x600x3050, Hot-dip gal..
MKSM 660 FT
6059032
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann MKSM 660 FT cable tray MKSM perforated with quick connector, 60x600x3050, Hot-dip gal.. creates structured pathways for electrical cabling in commercial buildings and manufacturing plants. Perforated cable trays support continuous runs while allowing ventilation and easy tie-off points. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 12,8037 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x600x3050
- Dimension B: 600 mm
- Dimension L: 480 mm
- Dimension x: 496 mm
- Dimension y: 562 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 12,8037 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x600x3050 |
| Dimension B | 600 mm |
| Dimension L | 480 mm |
| Dimension x | 496 mm |
| Dimension y | 562 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,7 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 358 cm² |
| Usable cross-section | 35800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 600 mm |
| With cover | no |
