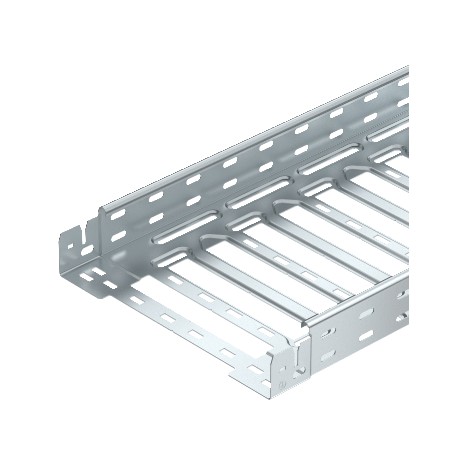

MKSM 650 FT 6059029 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 60x500x3050, Hot-dip gal..
MKSM 650 FT
6059029
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Organizing and supporting electrical wiring runs in industrial facilities is straightforward with this Obo Bettermann MKSM 650 FT perforated cable tray. Such components form the backbone of overhead or floor-level cable management systems, ensuring cables remain secure and accessible.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 11,1596 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x500x3050
- Dimension B: 500 mm
- Dimension L: 380 mm
- Dimension x: 396 mm
- Dimension y: 462 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 11,1596 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x500x3050 |
| Dimension B | 500 mm |
| Dimension L | 380 mm |
| Dimension x | 396 mm |
| Dimension y | 462 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,7 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 298 cm² |
| Usable cross-section | 29800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 500 mm |
| With cover | no |
