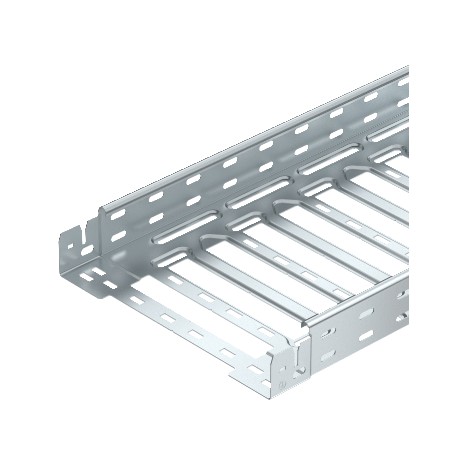

OBO BETTERMANN MKSM 640 FS MKSM 640 FS 6059008 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 60x400x3050, Strip-galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKSM 640 FS 6059008 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 60x400x3050, Strip-galva..

MKSM 640 FS

6059008

OBO BETTERMANN

3 m.

Cable tray MKSM perforated with quick connector, 60x400x3050, Strip-galvanised, DIN EN 10147, Steel, St MKSM MKSM 640 FS cable tray, perforated, with needle. 60x400x3050 Steel, St, strip galvanized, DIN EN 10346 MKS-Magic® 60 FS cable tray. Cable tray with integrated quick fixing system. The usable length of the cable tray is 3,000 mm.La cable tray has a continuous side perforation of 7 x 20 mm for the installation of additional joining and mounting components. From a tray width of 200 mm, with 30% perforation percentage, suitable according to the VdS 2092 standard for use under fire sprinkler systems.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Cable tray with quick connection system, including all the relevant connection components for time-saving and economic installation, with beaded straight base perforation, 7 x 79 mm, for bracket mounting. All widths with cross beading for stabilisation and duct ventilation. Continuous side perforation, 7 x 20 mm, as additional connector perforation. From a cable tray width of 200 mm, they are suitable for use under sprinkler systems according to VdS guideline 2092 permeable cable tray system with 30% hole surface. The stock length is 3,050 mm, the usable length when combined is 3,000 mm, The spring element FED 60 can be ordered separately as an accessory part (spare) for the Magic cable trays of side height 60 mm, 85 mm and 110 mm under the article number 6068859. Continuous equipotential bonding is guaranteed without additional components. VDE-tested cable tray system.
ETIM for 6059008 Cable tray, ladder and wire basket systems (EC000047)
Feature Name Feature Value
Height (EF000040) 60 mm
Width (EF000008) 400 mm
Material thickness (EF000386) 1 mm
Length (EF001438) 3050 mm
Working length (EF006318) 3000 mm
Useful cross section (EF005140) 23800 mm²
With cover (EF007965) No
Side perforation (EF001122) Yes
Bottom perforation (EF004545) Yes
NATO-mounting holes (EF006059) No
Model (EF000010) Integrated coupler
Type of connector (EF000141) Click in
Suitable for circuit integrity (EF007806) No
Material (EF002169) Steel
Surface protection (EF000139) Pre-galvanised
Weight (EF000167) 2.98 kg/m
Load test type according to IEC 61537 (EF015362) Type II
Possible support spacing (EF017261) 1.5 m
Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) 1500
Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) 1000
Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) 700
