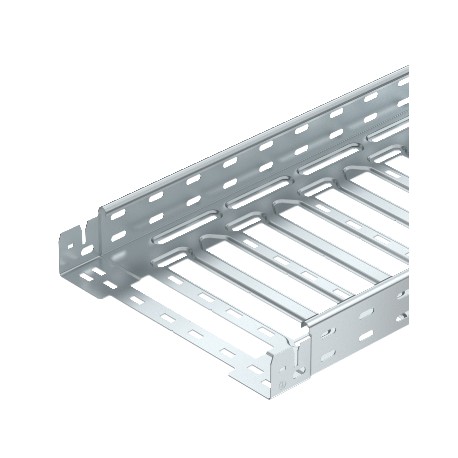

MKSM 630 FT 6059025 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 60x300x3050, Hot-dip gal..
MKSM 630 FT
6059025
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The MKSM 630 FT perforated cable tray from Obo Bettermann provides secure support and organized routing for electrical power cables in industrial facilities. Perforated base plates allow moisture drainage and offer convenient tie-down locations for cable bundles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 7,8593 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x300x3050
- Dimension B: 300 mm
- Dimension L: 180 mm
- Dimension x: 196 mm
- Dimension y: 262 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,8593 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x300x3050 |
| Dimension B | 300 mm |
| Dimension L | 180 mm |
| Dimension x | 196 mm |
| Dimension y | 262 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,7 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 178 cm² |
| Usable cross-section | 17800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 300 mm |
| With cover | no |
