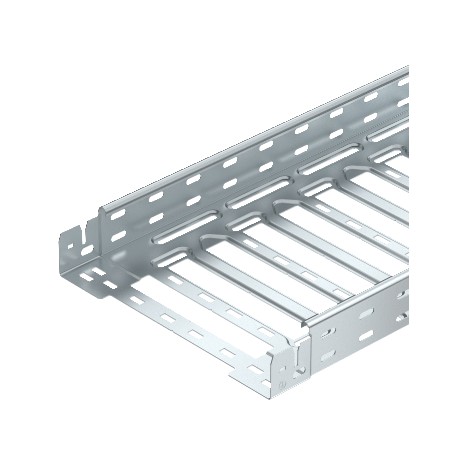

MKSM 630 FS 6059006 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 60x300x3050, Strip-galva..
MKSM 630 FS
6059006
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
MKSM 630 FS 6059006 OBO BETTERMANN cable tray MKSM perforated with quick connector, 60x300x3050, Strip-galva.. is a perforated metal cable tray designed to support, manage, and organize electrical cables within commercial and industrial facilities. Perforated troughs allow optimal airflow around conductors while maintaining clean routing paths across walls or overhead brackets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 7,9825 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x300x3050
- Dimension B: 300 mm
- Dimension L: 180 mm
- Dimension x: 196 mm
- Dimension y: 262 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,9825 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x300x3050 |
| Dimension B | 300 mm |
| Dimension L | 180 mm |
| Dimension x | 196 mm |
| Dimension y | 262 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| NEMA load class | 8A |
|---|---|
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,7 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 178 cm² |
| Usable cross-section | 17800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 300 mm |
| With cover | no |
