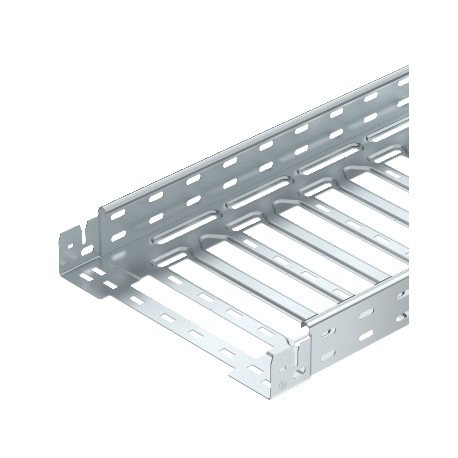

MKSM 610 FS 6059000 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 60x100x3050, Strip-galva..
MKSM 610 FS
6059000
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Supplied by Obo Bettermann, the MKSM 610 FS perforated cable tray provides organized routing and structural support for standard electrical cables in commercial buildings. Perforated trays facilitate airflow and offer versatile tie-off points along the cable run. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 4,4106 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x100x3050
- Dimension B: 100 mm
- Dimension L: 30 mm
- Dimension y: 62 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- NATO hole pattern: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 4,4106 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x100x3050 |
| Dimension B | 100 mm |
| Dimension L | 30 mm |
| Dimension y | 62 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| NEMA load class | 8A |
|---|---|
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 1,6 kN/m |
| Support spacing 2.0 m | 1,1 kN/m |
| Support spacing 2.5 m | 0,7 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 5800 mm² |
| Usable cross-section | 58 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 100 mm |
| With cover | no |
