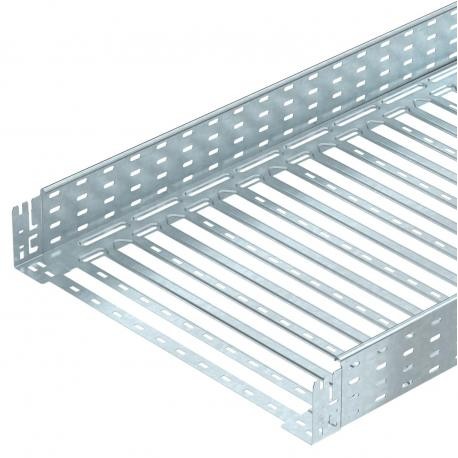

OBO BETTERMANN MKSM 160 FT MKSM 160 FT 6059185 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 110x600x3050, Hot-dip ga.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKSM 160 FT 6059185 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 110x600x3050, Hot-dip ga..

MKSM 160 FT

6059185

OBO BETTERMANN

3 m.

Cable tray MKSM perforated with quick connector, 110x600x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cable tray MKS-Magic® 110 FT. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A hot-dip galvanised Obo Bettermann MKSM 160 FT cable tray provides robust mechanical support for heavy-duty electrical cable distribution networks. Such systems ensure orderly routing and long-term durability in demanding industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 14,4653 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 110x600x3050
  • Dimension B: 600 mm
  • Dimension L: 480 mm
  • Dimension x: 496 mm
  • Dimension y: 562 mm
  • Height: 110 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate14,4653 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension110x600x3050
Dimension B600 mm
Dimension L480 mm
Dimension x496 mm
Dimension y562 mm
Height110 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
Plate thickness1 mm
Rustproof steel, pickledno
Side perforationyes
Sprinkler system useyes
Support spacing 1.5 m1,8 kN/m
Support spacing 2.0 m1,3 kN/m
Support spacing 2.5 m0,92 kN/m
Support spacing 3.0 m0,65 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section65500 mm²
Usable cross-section655 cm²
Usable length3000 mm
Wide-span versionno
Width600 mm
With coverno
